Product Description：

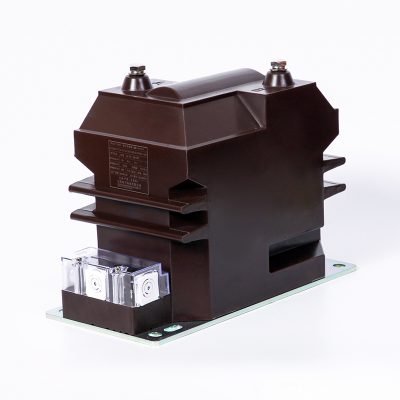

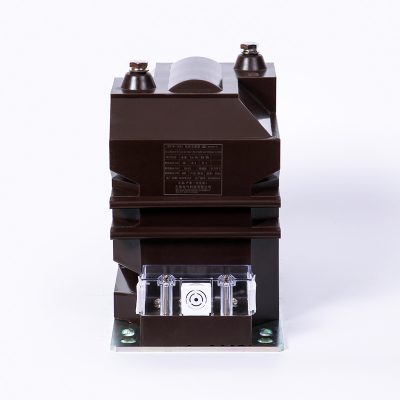

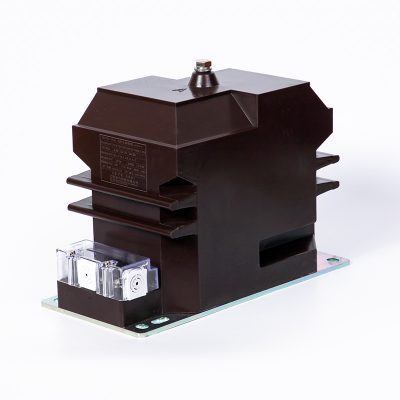

JDZ10 , RZL, VT PT single phase cast resin Insulated and full enclosed, used for electric energy metering, voltage control and relay protection in the power systems of rated voltage 3kV, 6kV, and 10kV or below. The products are in accordance with IEC60044 and GB20840.3-2013 “voltage transformer”

Features:

1. 1.Full enclosed
2. 2.Single phase, 3kV, 6kV, and 10kV
3. 3.The products are in accordance with IEC60044 and GB20840.3-2013
4. Same “RZL”

For the voltage transformer ,we produce below models:

3kV, 6kV, 10kV  such as JDZ(X)10series ,  JDZ(X)9 series

15kV, 20kV , such as JDZ(X)11 series,

33kV, 35kV,36kV ,such as JDZ(X)9-35 series

For three phase voltage transformer is JSZV12, JSZV18 and JSZWF12

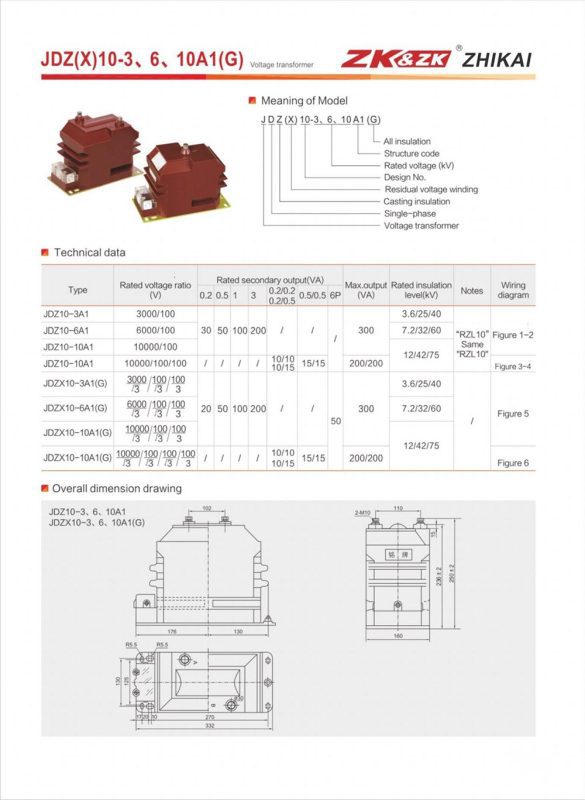

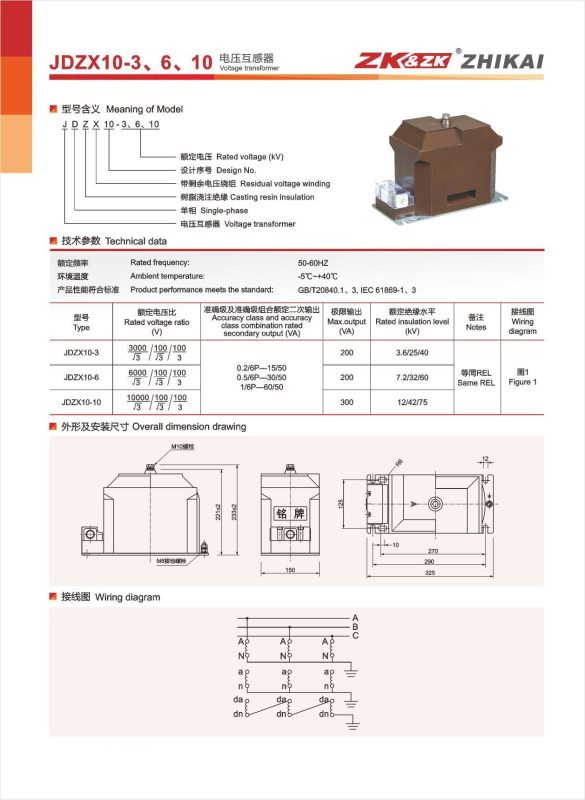

Specification:

Why choose us?

1. Cores all is produced by ourselves, and to test the performance of core. Finished product will be test by instrument transformer calibrator. If find defective if can be rework , will be rework, if not as wasters.
2. We own one strong R&D and QC team，and 100%quality inspection is performed before delivery.
3. Have the ability to do OEM/ODM to meet clients’ requirements.

Zhikai has been making iron core for more than 22 years;  has been making CTs in China for 12 years.
