    Product Description:

    Busbar type LMK(DP) current transformer have been designed to easily fit around cables without cutting off the circuit.

    Two parts of cutting cores is easy to open .

    Square current transformer with big capacity and big mounting hole size, could be in more power applications.

    The open type current transformer complies to IEC60044-1,GB1208-2006



    1.Double-screw fastening, safe, easy to install, portable.

    2.Two built in fixing methods:Base;Bus-bar mounting
    3.Wide inner window, allowing clamping of big cables or bus-bars.
    4.Wide range of sizes to accommodate all the existing installations.
    5.Rated input current :up to 5000A

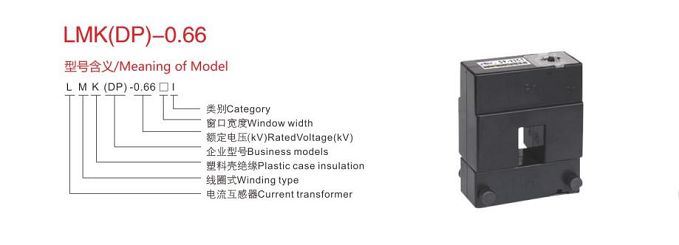

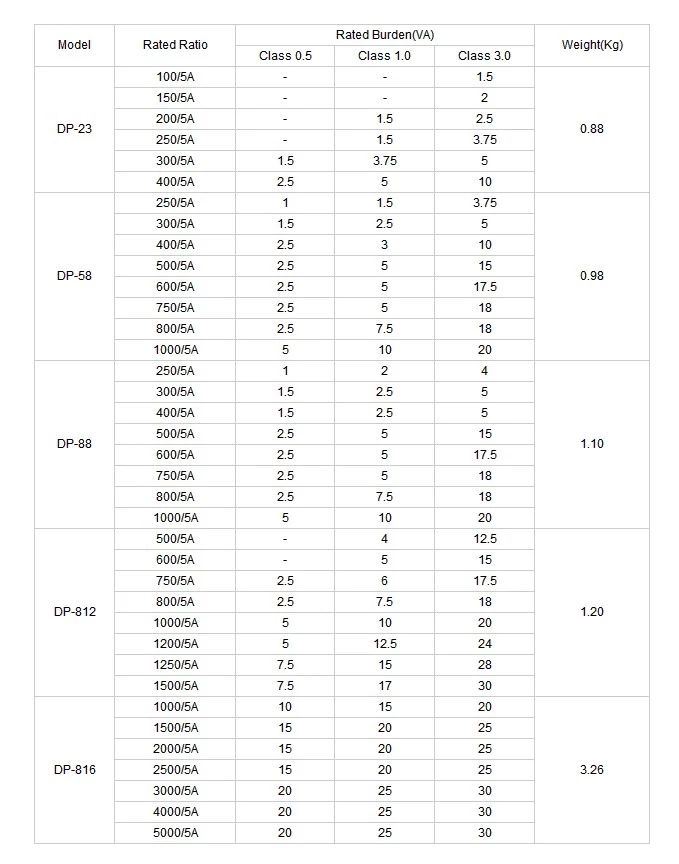

    busbar type current transformer 3busbar type current transformer 4

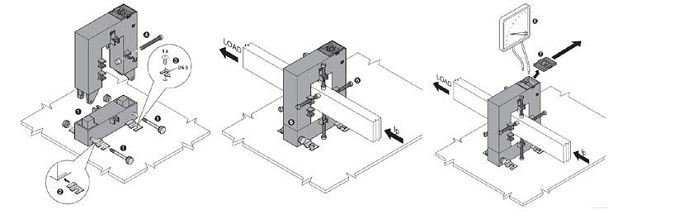

    busbar type current transformer5


    Note: The current Ratio above are common type, other specifications can be provided according to customers’ requirements. High frequency current transformer.




    Inner box , outer carton , wooden pallet or plastic pallet.
