Medium Voltage Cast Resin Current Transformer

Get in Touch with Us! a Quote Now ! an Answer Now !



    Products Categories

    Split Core CT

    Bushing CT

    Low Voltage CT

    Medium Voltage CT

    Potential CT

    Iron Cores Series

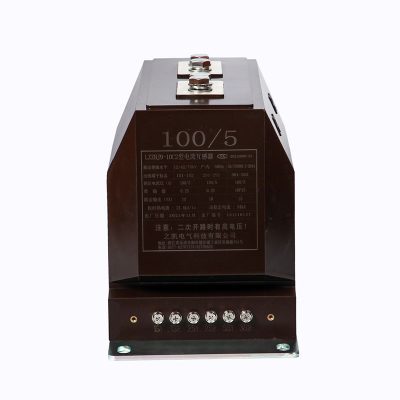

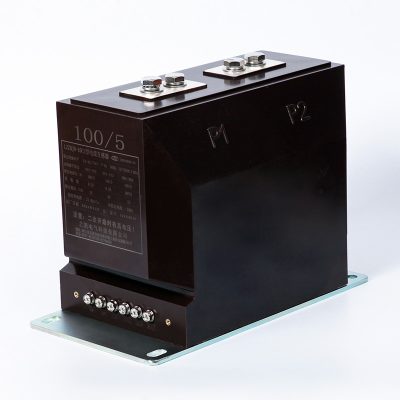

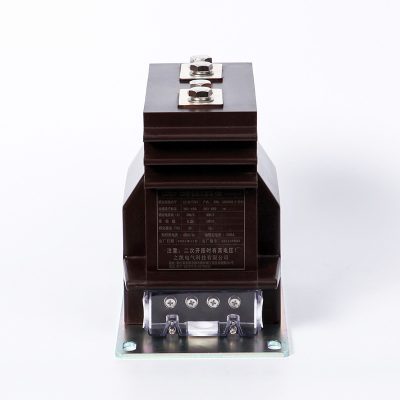

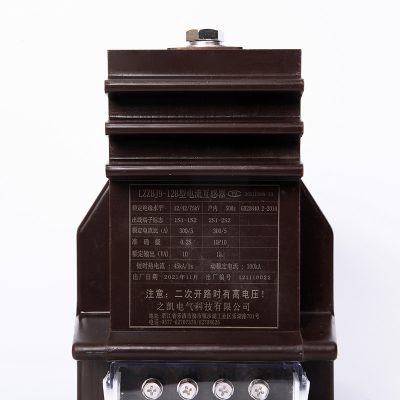

    Product Description

    This series is used to protect or measure current, energy and power. Installed in the center switchgear on other types of switchgear.

    Features:

    1. Epoxy resin material
    2. One-piece casting molding structure semi-closed and strong insulation
    3. Isolated plastic case recognized according to UL94-V0
    4. The products comply with IEC60044-1 ,GB1208

    Specification:

    Rated primary current (A) Accuracy classes combination Rated secondary output(VA)      0.2s   0.2            0.5       10P10 10P15  1s thermal current (kA)  Rated dynamic current (kA) Notes
    5-150

    0.2S/10P15

    0.5S/10P15

    0.2/10P15

    0.5/10P15 10P10/10P10

    10 10 15 15 20 15OI1n

    37511 n

    80

    100

     Two windings

    200

    300-800 1000-1500 2000-3150 5-150 200

    300-800

    1000-1500

    36

    45

    15 20 20 30

    63

    80

    130

    160

    0.2S/0.2/10P15

    0.2S/0.5/10P15

    0.2/0.5/10P15

    0.5/0.5/10P15

    10

    15

    20

    15

    20

    15

    20

    15OI1n

    36

    375l1n

    80

    Three windings

    45

    63

    100

    130

    2000-3150 80 160

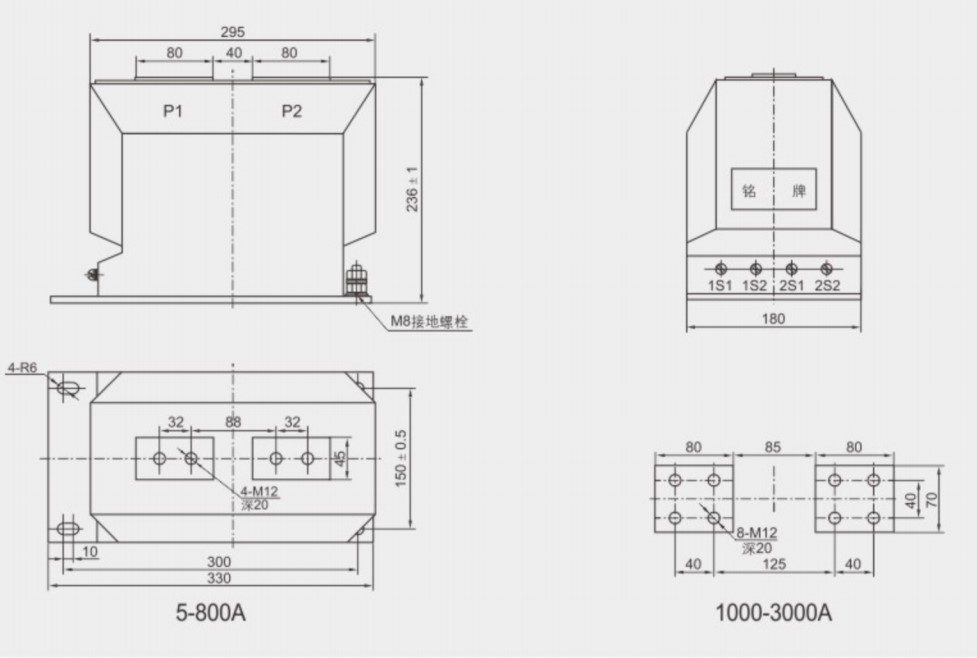

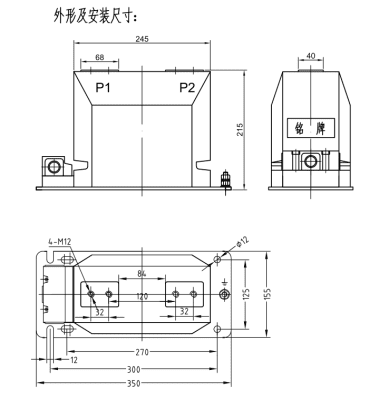

    Outline Dimension drawing(in mm )

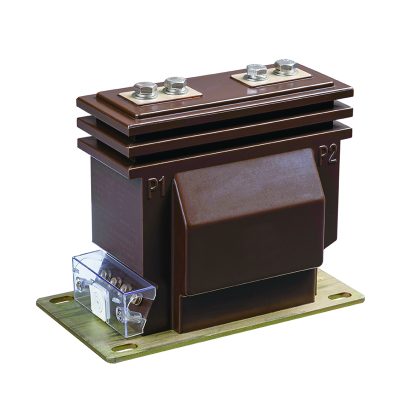

    medium voltage cast resin current transformer

    Zhikai ,we own one strong R&D and QC team continues to innovate new solutions for customers in the area of Smart Grid Industry all covering distribution, Saving&Protecting&Metering Electicty, and Power System.



    Application:

    Installation site: indoor
    Ambient temperature:-15℃~+40℃, daily average temperature not more than +30℃
    Attitude: does not exceed 3000m
    Humidity: the average value of the relative humidity measure for a period of 24 h does not exceed 95 percent
    Contamination severity: class II
    No severe shake or bump in the installation site
    The ambient air is not significantly polluted by dust, smoke, corrosive gases, vapors, or salt



    Why choose us?

    1. Cores all is produced by ourselves, and to test the performance of core. High accuracy split core ct of finished product will be test by instrument transformer calibrator. If find defective if can be rework , will be rework, if not as wasters.
    2. We own one strong R&D and QC team,and 100%quality inspection is performed before delivery.
    3. Have the ability to do OEM/ODM to meet clients’ requirements.
    4. Zhikai has been making iron core for more than 22 years;  has been making CTs in China for 12 years.
