    Product Description:

    Wound Primary Current Transformer can be used to test, control, display and record the running of the electrical equipment. The flexible current transformer can protect the equipment against the damage, in the AC circuit below 720v, AC 50/60Hz. Also, this electrical transformer complies with VDE 0414,BS7626 and EC44-1 standard. It can provide you consistent performance and quality, so you can rest assured to purchase.

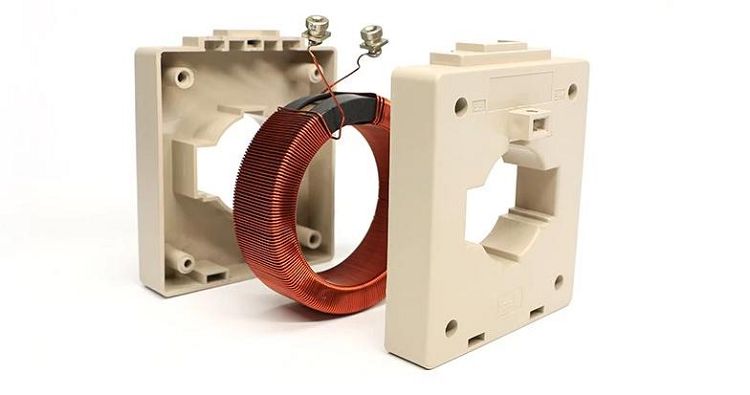

    Wound Primary Current Transformer features its semicircular ring core and secondary winding, which are cast in flame-retardant plastic housings using high-quality epoxy. Its wide applications include current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment, etc.

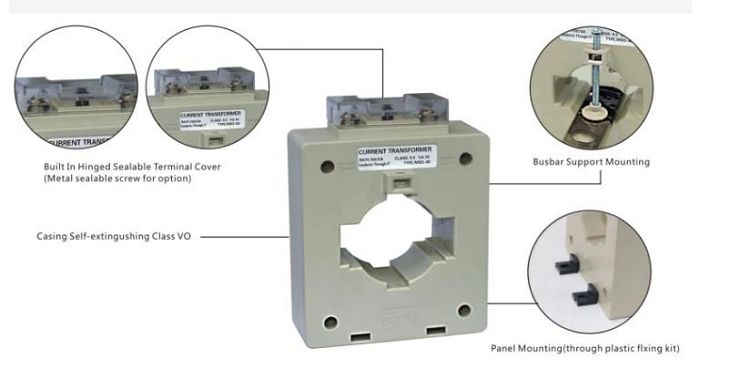

    wound primary current transformerwound primary current transformer 2

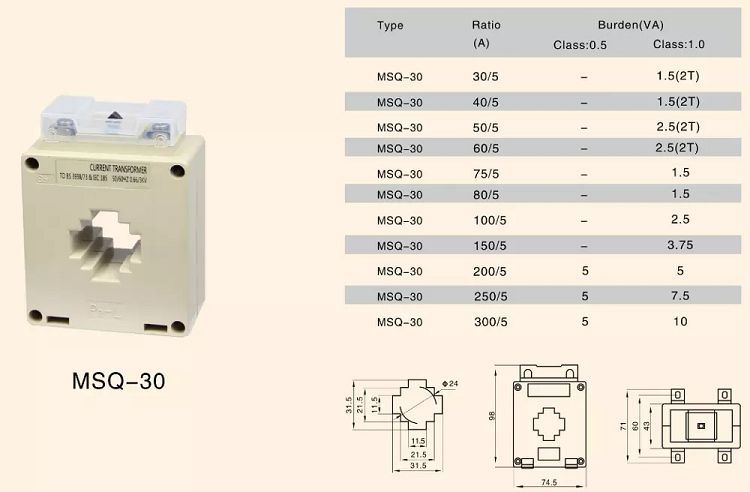

    wound primary current transformer 3

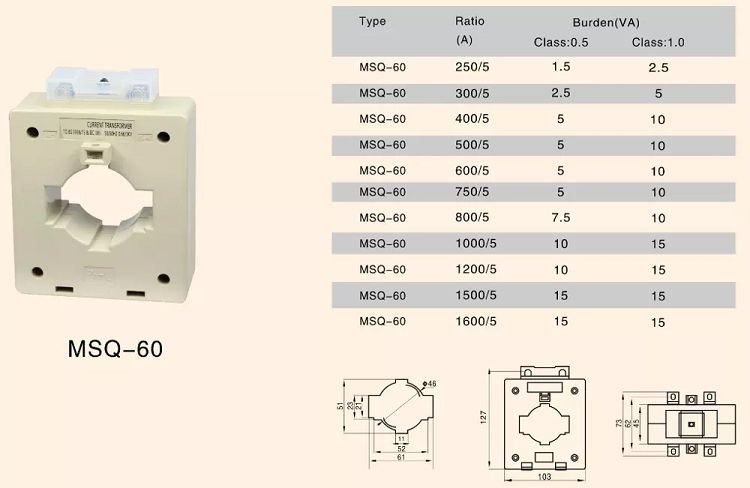

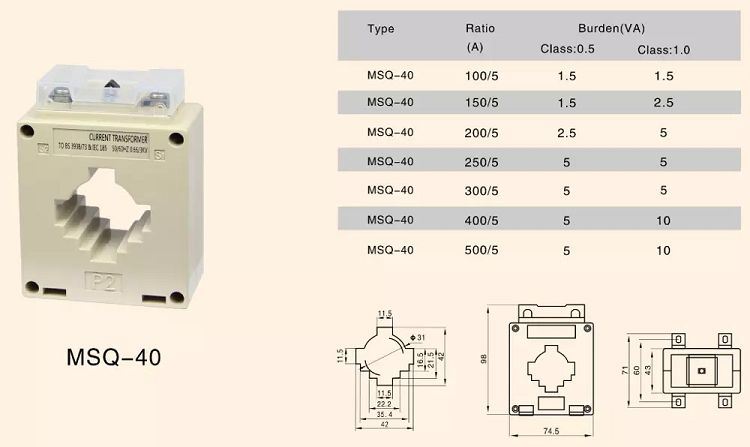

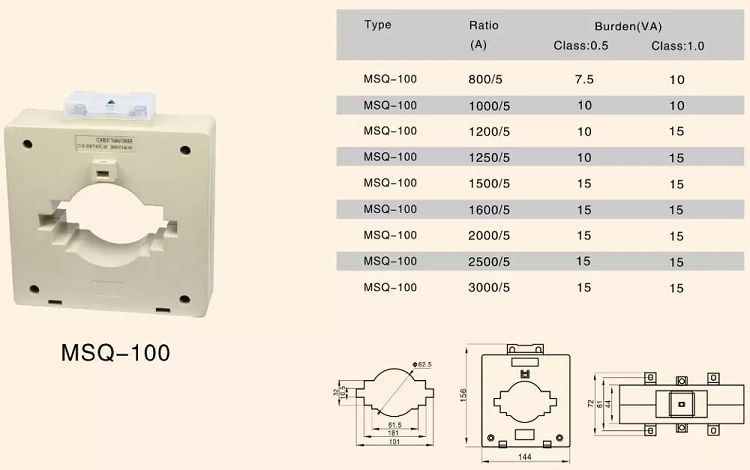

    wound primary current transformer 4 wound primary current transformer 5 wound primary current transformer 7

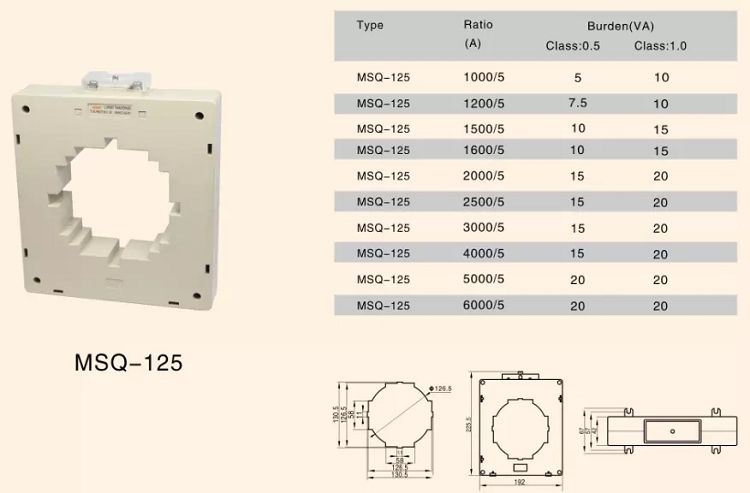

    wound primary current transformer 8
