    Product Description:

    Zhikai is producing the single phase split-core current transformer and 10mm measuring current transformer.

    Cores all is produced by ourselves, and to test the performance of each core.

    Finished product will be test by instrument transformer calibrator. If find defective if can be rework , will be rework, if not as wasters.

    Providing with quality and standard customer-made electronic and passive components split core current transformer.



    Features:

    1)LMCK series split- core current transformer Compatible to foreign similar products completely, built-in transient voltage suppressor to protect .

    2) ABS anti-combustion plastic casing

    3) Core material: Ferrite

    4) Mechanical strength: the opening and closing times of not less than 1000 times(20°C when the test)

    5)Safety index: Dielectric strength 3000V/1min (Between the shell and the output)

    6)Fire resistance property in accordance with UL94-VO

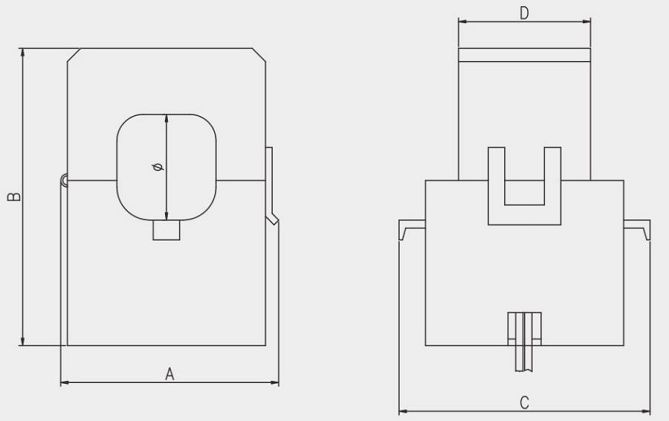

    Outline size diagram:(in mm)

    size



    Outline size (mm)
    φ A B C D
    10 30 40 34 26
    16 34 45 38 20
    24 51 66 43 23
    36 67 85 50 42
    50 93 120 70 28

    Main business: The production and sales of own brand, technical support,OEM, ODM and so on



    Specification:

    Model Inner diameter Ratio
    LMCK-10 10mm 5A/2.5mA, 20A/10mA, 75A/25mA, 60A/20mA, 1-75A/0.333V
    LMCK-16 16mm 100A/33.3mA, 100A/40mA, 120A/40mA, 200A/66.7mA, 100-200A/0.333V
    LMCK-24 24mm 100A/40mA, 200A/40mA, 200A/66.7mA, 400A/80mA, 100-400A/0.333V
    LMCK-36 36mm 300A/100mA, 400A/40mA, 500A/50mA, 600A/60mA, 300-600A/0.333V
    LMCK-50 50mm 500A/50mA, 600A/60mA, 800/80mA, 800-1000A/0.333V



    Note:The following table Just for your reference, please contact with our company or dealers for detailed parameters.



    Application:

    1) Current measurement, monitoring and protection for electrical wiring and equipment, single phase split core ct.

    2) Current and power measurement for electric motors, lighting, air compressor, heating

    and ventilation system, air-condition equipment and automation – control system.

    3) Current, power and energy monitoring device.

    4) Widely used in the relay protection area-Current measurement



    Package:

    Inner box(3pieces), outer carton
