Rectangle Split Core Current Transformer

Get in Touch with Us! a Quote Now ! an Answer Now !

    Products Categories

    Split Core CT

    Bushing CT

    Low Voltage CT

    Medium Voltage CT

    Potential CT

    Iron Cores Series

    Product Description:

    The DBP series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without cutting off cable or bus-bar circuit.

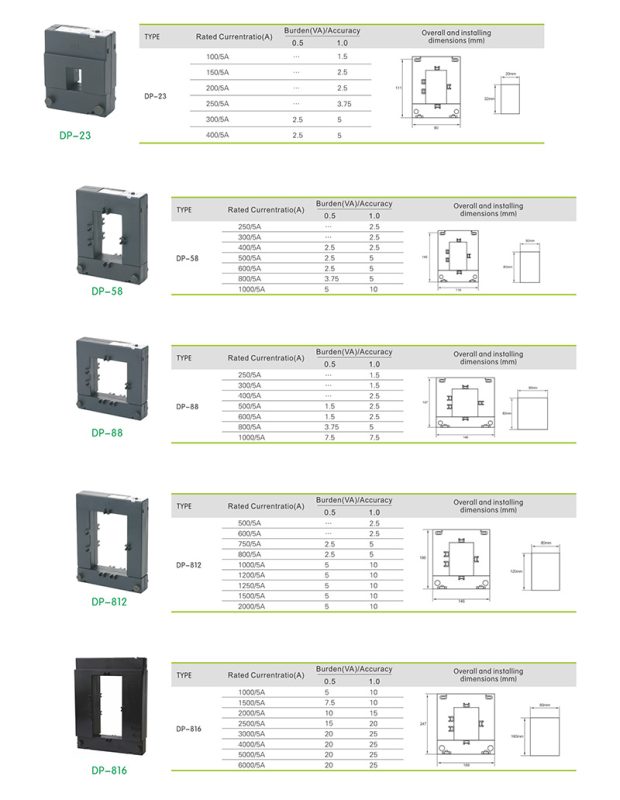

    Rectangle split core current transformer

    Lv current transformer

    Low power current transformer

    Clamp-on current transformer



    1.Two built in fixing methods:Panel; Busbar
    2.Easy to install.
    3.Wide inner window, allowing clamping of big cables or bus-bars.

    4.Wide range of sizes to accommodate all the existing installations.
    5.Primary current from 5A to 5000A.

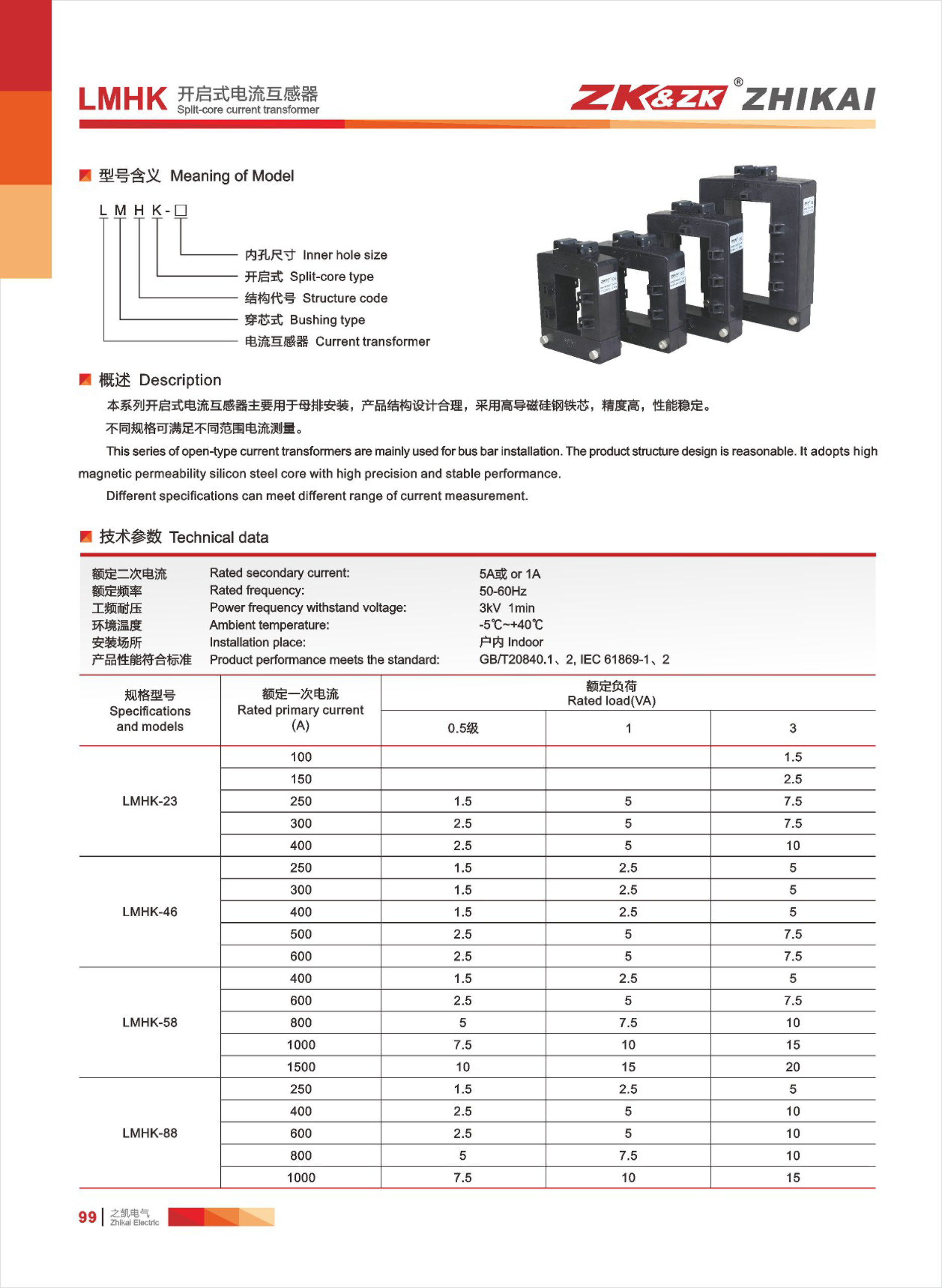

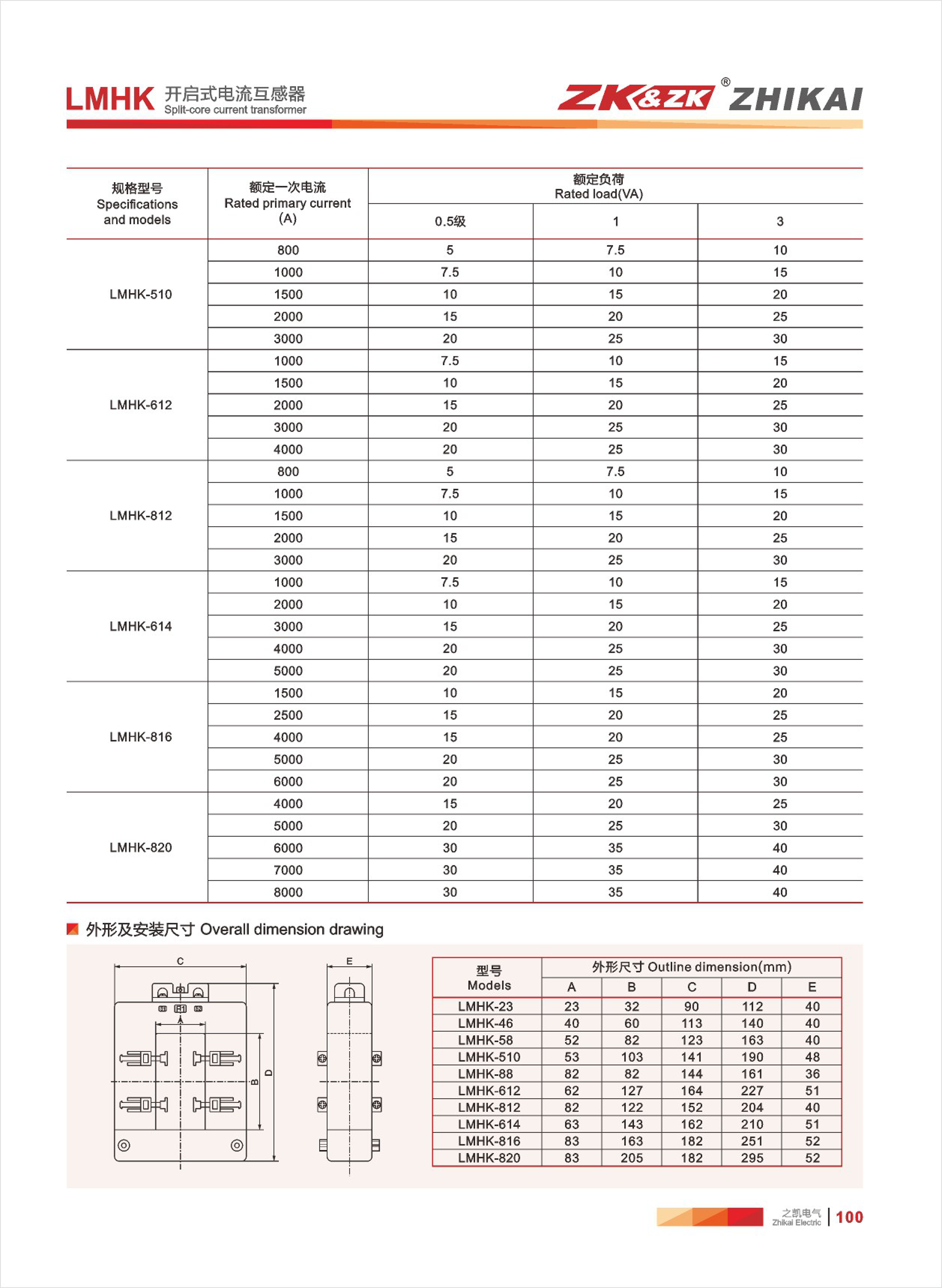

    Electrical Parameter Mechanical Parameter
    Frequency 50-400Hz Case PC/UL94-V0
    Rated Input 5A-5000A Bobbin PBT
    Measuring range 10%In-120%In Core Silicon steel
    Rated Output 0-5A Internal structure Epoxy
    Ratio ≤ ± 0.5% Construction Tie
    Phase angle ≤ ±30min Operation Temp -25oC~+75oC
    Dielectric strangth 2.5KV/1mA/1min Operating Humidity ≤85%
    Insulation Resistance DC500V/100MΩ min Output Connection Terminal


    dp 1dp 2


    Note: The current Ratio above are common type, other specifications can be provided according to customers’ requirements.



    1: Current measurement, monitoring and protection for electrical wiring and equipment.

    2: Current and power measurement for electric motors, lighting, air compressor, heating

    and ventilation system, air-condition equipment and automation – control system.

    3: Current, power and energy monitoring device.

    4: Relay protection device.
