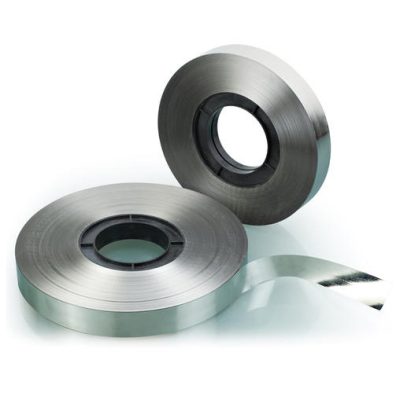

Amorphous Core

Get in Touch with Us! a Quote Now ! an Answer Now !



    Products Categories

    Split Core CT

    Bushing CT

    Low Voltage CT

    Medium Voltage CT

    Potential CT

    Iron Cores Series

    Product Description:

    Power transformer is specifically measure current and power transmission lines of special transformers. According to measurement accuracy class requirements, can choose a different soft magnetic materials as core. Silicon steel sheet cutting core is the lower lost than the amorphous core.



    Features:

    1. The higher permeability core
    2. the higher the measurement accuracy toroidal iron cores
    3. Ferrite cores



    Specification:

     OEM designs are available for satisfying your unique need.

    Dimension of cores can be adjusted freely according to customer’s requirements.

    Application:

    Measuring Current Transformer Substation Power Cores. .

    At present the greatest amount of core material is cold-rolled silicon steel, glass and nano-crystalline alloy Mo alloy toroidal iron core.

    Silicon steel sheet iron core is pure iron in the addition of a small amount of silicon (generally less than 4.5%) formed by the ferro-silicon alloy known as silicon steel.

    In recent years, high-precision level (such as the 0.2, 0.2S class, 0.5S level) of the transformer demand is increasing rapidly. When asked to become more than a small, low-security turns, or the core size due to volume requirements restricted circumstances, the grain oriented cold rolled silicon steel sheet meet the requirements.



    Package:

    Corrosion preventive paper, then to carton (inside) , steel belt, wooden or plastic pallet (outside) , is suitable for long sea transportation.
